1000 ml
Suction liner with shutoff filter-2N
Code No. : SG1001
Capacity : 1000 ml
1000 ml

Suction liner with shutoff filter-2NP
Code No. : SG1001-01
Capacity : 1000 ml
1000 ml
Suction liner with shutoff filter-2N*
Code No. : SG1002
Capacity : 1000 ml
1000 ml

Suction liner with shutoff filter-2NP*
Code No. : SG1002-01
Capacity : 1000 ml
1000 ml
Suction liner with shutoff filter
Code No. : SG1501
Capacity : 1500 ml
1000 ml

Suction liner with shutoff filter*
Code No. : SG1502
Capacity : 1500 ml
1000 ml
Suction liner with shutoff filter-2N
Code No. : SG1504
Capacity : 1500 ml
1000 ml

Suction liner with shutoff filter-2NP
Code No. : SG1504-01
Capacity : 1500 ml
1000 ml
Suction liner with shutoff filter-2N*
Code No. : SG1505
Capacity : 1500 ml
1000 ml

Suction liner with shutoff filter-2NP*
Code No. : SG1505-01
Capacity : 1500 ml
2000 ml
Suction liner with shutoff filter
Code No. : SG2001
Capacity : 2000 ml
1000 ml

Suction liner with shutoff filter*
Code No. : SG2002
Capacity : 2000 ml
2000 ml
Suction liner with shutoff filter
Code No. : SG2004
Capacity : 2000 ml
1000 ml

Suction liner without shutoff filter*
Code No. : SG2005
Capacity : 2000 ml
2000 ml
Suction liner with shutoff filter-2N
Code No. : SG2007
Capacity : 2000 ml
1000 ml

Suction liner with shutoff filter-2NP
Code No. : SG2007-01
Capacity : 2000 ml
2000 ml
Suction liner with shutoff filter-2N*
Code No. : SG2008
Capacity : 2000 ml
1000 ml

Suction liner with shutoff filter-2NP*
Code No. : SG2008-01
Capacity : 2000 ml
2000 ml
Suction liner without shutoff filter-2N
Code No. : SG2010
Capacity : 2000 ml
1000 ml

Suction liner without shutoff filter-2NP
Code No. : SG2010-01
Capacity : 2000 ml
2000 ml
Suction liner without shutoff filter-2N*
Code No. : SG2011
Capacity : 2000 ml
1000 ml

Suction liner without shutoff filter-2NP*
Code No. : SG2011-01
Capacity : 2000 ml
2000 ml
Suction liner with shutoff filter
Code No. : SG3001
Capacity : 3000 ml
1000 ml

Suction liner with shutoff filter*
Code No. : SG3002
Capacity : 3000 ml
2000 ml
Suction liner without shutoff filter
Code No. : SG3004
Capacity : 3000 ml
1000 ml

Suction liner without shutoff filter*
Code No. : SG3005
Capacity : 3000 ml
2000 ml
Suction liner with shutoff filter-2N
Code No. : SG3007
Capacity : 3000 ml
1000 ml

Suction liner with shutoff filter-2NP
Code No. : SG3007-01
Capacity : 3000 ml
2000 ml
Suction liner with shutoff filter-2N*
Code No. : SG3008
Capacity : 3000 ml
1000 ml

Suction liner with shutoff filter-2NP*
Code No. : SG3008-01
Capacity : 3000 ml
2000 ml
Suction liner without shutoff filter-2N
Code No. : SG3010
Capacity : 3000 ml
1000 ml

Suction liner without shutoff filter-2NP
Code No. : SG3010-01
Capacity : 3000 ml
2000 ml
Suction liner without shutoff filter-2N*
Code No. : SG3011
Capacity : 3000 ml
1000 ml

Suction liner without shutoff filter-2NP*
Code No. : SG3011-01
Capacity : 3000 ml

Safety

Safety by design, easy to use, security for patient health.

Infectious waste, how to dispose it?Adhering to easy operation and safety by design, Yung Kang airtight suction liner system improves the hospital infection control system to reduce the infection risk of patients and health care professionals.The system can reduce the operation contamination efficent by its professional design,maintain the health and safety of the environent.
solidify
solidify Unit
Solidifying Agent Unit
After the suction procedure, the super absorbent polymer content of the unit is discharged throughout the liner solidifying the collected liquid medical waste and hence reducing the risk of contamination.
solidify
Hidden suction port
No need to connect and remove any other tube, which reduces the risk of infection during the operation.
Filter
Made of polymer materials, it is a switch of stop suction to prevent overflow, which can effectively barrier bacteria diffusion.
Unidirectional valve
The unidirectional valve is made of silicone material, which prevents liquid spilling and reduces cross-infection in the hospital.
compressible
Compressible and extendable liner design
When the suction procedure is finished, the liner may be extended for an easier removal and prevent spilling of the waste.
compressible
Non-contact fusion design
The cap and liner are made of thermoplastic fusion design, with high strength and toughness of the seal that can withstand the weight of 60kg.
compressible
Hendle
A handle designed on the rim of the lid makes removing of liner easier.

Design

Simple combination makes replacement easier

simple combination
Using a simple combination of suction
The system can be driven by the central gas system to achieve the tightness between suction liner and canister and save manpower.
auto bounce
Automatic bounce,easy to remove
After use of the suction liner,the reaction force relieves the negative pressure, and the liner pops the bottle up to facilitate it removal by health care workers.
endurance
Safety design with high endurance
A highly endurable handle makes removal of the used suction liner and processing of the wastes much easier.

Material

material
material

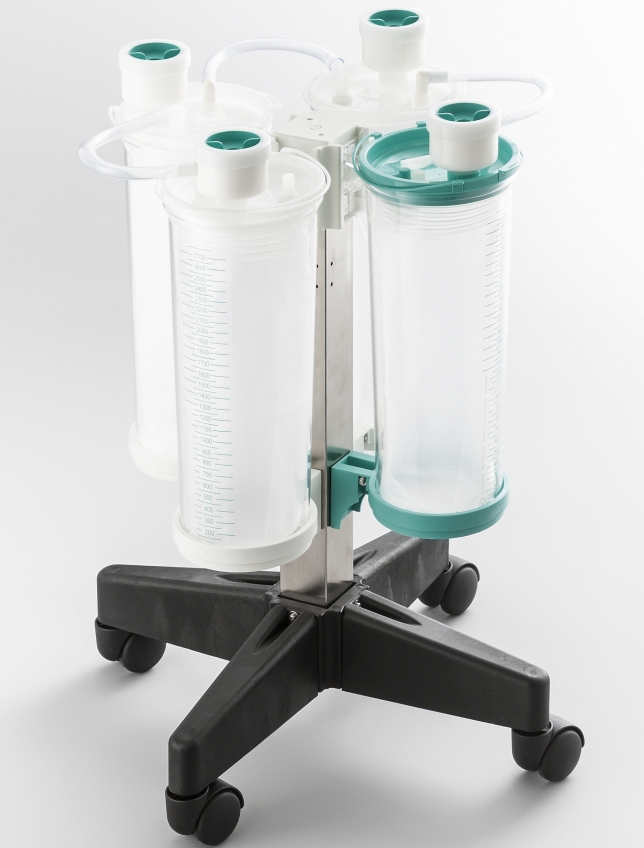

The suction canister is made of impact-resistant, strengthened polycarbonate materials.
The suction liner is made of environmentally friendly polyethylene materials.
Canister ring combines the color of white and green
White liner with a white ring.
Green liner with a green ring.
Canister ring can stablize the canister, using a impact-resistant material of Nyloy.
Yung Kang Suction Liner Specification Table
1000 ml 1500 ml 2000 ml 3000 ml Product Description Quantity
SG1501 SG2001 SG3001 With shut-off filter 50 PCS
SG1001 SG1504 SG2007 SG3007 With shut-off filter-2N 50 PCS
SG1001-01 SG1504-01 SG2007-01 SG3007-01 With shut-off filter-2NP 50 PCS
SG1502 SG2002 SG3002 With shut-off filter* 50 PCS
SG1002 SG1505 SG2008 SG3008 With shut-off filter-2N* 50 PCS
SG1002-01 SG1505-01 SG2008-01 SG3008-01 With shut-off filter-2NP* 50 PCS
SG1503 SG2003 SG3003 With shut-off filter# 50 PCS
SG1003 SG1506 SG2009 SG3009 With shut-off filter-2N# 50 PCS
SG1003-01 SG1506-01 SG2009-01 SG3009-01 With shut-off filter-2NP# 50 PCS
SG2004 SG3004 Without shut-off filter 50 PCS
SG2010 SG3010 Without shut-off filter-2N 50 PCS
SG2010-01 SG3010-01 Without shut-off filter-2NP 50 PCS
SG2005 SG3005 Without shut-off filter* 50 PCS
SG2011 SG3011 Without shut-off filter-2N* 50 PCS
SG2011-01 SG3011-01 Without shut-off filter-2NP* 50 PCS
SG2006 SG3006 Without shut-off filter# 50 PCS
SG2012 SG3012 Without shut-off filter-2N# 50 PCS
SG2012-01 SG3012-01 Without shut-off filter-2NP# 50 PCS

Note:
  • (1)「With shut-off filter suctionliner」: the suction liner with shut-off filter provides the function of avoid liquid waste spilling and 「blocking microorganisms」.It is distinguished by the lid color of green.
  • (2)「Without shut-off filter suction liner」: the suction liner without shut-off filter is only used as series suction collection bags. It is distinguished by the lid color of white.
  • (3)「-2」represents second generation suction system, featuring with a hidden suction port, a handle, and compressible and extendable liner design.
    (N) indicates the suction liner with a pour spout.「NP」indicates the suction liner with no pour spout.
    (*)「Super absorbent polymer」converts liquid waste into solid waste to avoid spilling and splashing, applicable to bio-hazardous fluids.
    (#)「Chlorine dioxide disinfectant」is an advanced waste disinfection that can reduce bacteria proliferation.
